$4,999.00 Original price $7,999.00
You have added

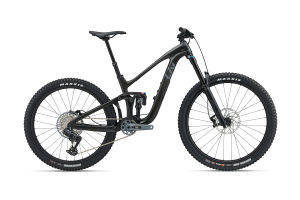

Intrigue LT Advanced
to your cart.
Lightweight Advanced-grade composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centered and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you’ve got a bike that is equal parts agile and burly.
Equipped with the new flip chip – Maestro 3, you can easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
A state-of-the-art, high-pressure molding process used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar aluminum components.
This all-new technology allows you to quickly adjust the geometry of your bike to better suit riding conditions and rear-wheel size choice. Using two different flip chips – a combination high/ low and a dedicated mid-position chip – riders can change the head tube angle, seat tube angle and bottom bracket height using eccentric hardware located on the upper rocker arm of the rear suspension.
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
163 cm5’4” 169 cm5’7” 175 cm5’9”
| XS | S | M | |
|---|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | |
| A Seat Tube Length (mm) (inch) | 37014.6 | 39015.4 | 42016.5 |
| A1 Seat Post Insertion Depth (mm) (inch) | 2309.1 | 2509.8 | 28011 |
| B Seat Tube Angle (degrees) | 76.2° | 76.6° | 77.0° | 76.2° | 76.6° | 77.0° | 77.3° | 77.6° | 78.0° |
| C Top Tube Length (mm) (inch) | 55221.7 | 55221.7 | 55021.7 | 56722.3 | 56622.3 | 56522.2 | 58122.9 | 58022.8 | 57922.8 |
| D Head Tube Length (mm) (inch) | 953.7 | 953.7 | 1003.9 |
| E Head Tube Angle (degrees) | 64.7° | 65.1° | 65.5° | 64.6° | 65.1° | 65.5° | 64.8° | 65.1° | 65.5° |
| F Fork Rake (mm) (inch) | 441.7 | 441.7 | 441.7 |
| G Trail (mm) (inch) | 1315.2 | 127.95 | 124.84.9 | 131.65.2 | 127.85 | 124.84.9 | 130.65.1 | 127.75 | 124.84.9 |
| H Wheelbase (mm) (inch) | 116645.9 | 116645.9 | 116445.8 | 118346.6 | 118046.5 | 117946.4 | 120847.6 | 120747.5 | 120747.5 |
| I Chain Stay Length (mm) (inch) | 44317.4 | 44217.4 | 44017.3 | 44317.4 | 44217.4 | 44017.3 | 44317.4 | 44217.4 | 44017.3 |
| J Bottom Bracket Drop (mm) (inch) | 251 | 200.8 | 150.6 | 240.9 | 200.8 | 150.6 | 351.4 | 301.2 | 251 |
| K Stack (mm) (inch) | 62924.8 | 62724.7 | 62424.6 | 62824.7 | 62724.7 | 62424.6 | 62824.7 | 62524.6 | 62224.5 |
| L Reach (mm) (inch) | 39815.7 | 40215.8 | 40616 | 41316.3 | 41716.4 | 42116.6 | 43917.3 | 44217.4 | 44717.6 |
| M Stand Over Height (mm) (inch) | 61324.1 | 61324.1 | 61324.1 | 67426.5 | 67426.5 | 67426.5 | 71228 | 71228 | 71228 |
| N Handlebar Width (mm) (inch) | 76029.9 | 76029.9 | 76029.9 |
| O Stem Length (mm) (inch) | 401.6 | 502 | 502 |
| P Crank Length (mm) (inch) | 1656.5 | 1706.7 | 1706.7 |
| Q Wheel Size | F 29 | R 27.5 | F 29 | R 27.5 | 29" |
All prices and specifications are subject to change without notice.
