Revolt 2

1274 Original price 1699

Available sizes: XS, ML, XL (Metallic Black Only)
In store only

Contact

Our Canadian warehouses will be closed from December 13th to January 2nd. Place your order now to avoid missing out! Local bike shops are here to help with your shopping needs!

Find your local bike shop here!

Nos entrepôts canadiens seront fermés du 13 décembre au 2 janvier. Passez votre commande maintenant pour ne pas manquer l'occasion! Les magasins de vélos locaux sont prêts à vous aider avec vos achats!

Share

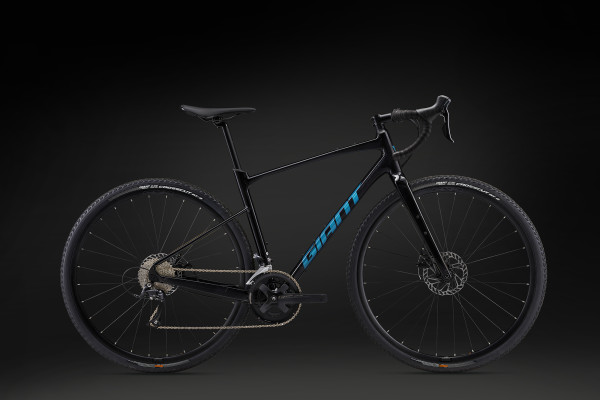

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Key Performance Factors

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Techs & Features

ALUXX Aluminum Technology
D-Fuse Technology
OverDrive
Tubeless System
Flip Chip - Dropout

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      155 cm5’1”  to 166 cm5’5”
  • S
      159 cm5’3”  to 171 cm5’7”
  • M
      169 cm5’7”  to 181 cm5’11”
  • ML
      174 cm5’9”  to 186 cm6’1”
  • L
      179 cm5’10”  to 191 cm6’3”
  • XL
      189 cm6’2”  to 200 cm6’7”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  XSSMMLLXL
  SHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONGSHORT | LONG
ASeat Tube Length (mm) (inch)43016.945017.747018.549019.351020.153020.9
BSeat Tube Angle (degrees)74.0°73.5°73.5°73.0°73.0°73.0°
CTop Tube Length (mm) (inch)54021.355021.75602257522.65852360023.6
DHead Tube Length (mm) (inch)1254.91355.31505.91656.51807.11957.7
EHead Tube Angle (degrees)70.0°71.0°71.5°72.0°72.0°72.0°
FFork Rake (mm) (inch)502502502502502502
GTrail (mm) (inch)783.1 | 823.2722.8 | 753682.7 | 722.8652.6 | 682.7652.6 | 682.7652.6 | 682.7
HWheelbase (mm) (inch)102940.5 | 103940.9102540.4 | 103540.7103040.6 | 104040.9103540.7 | 104541.1104541.1 | 105541.5106141.8 | 107142.2
IChain Stay Length (mm) (inch)43016.9 | 44017.343016.9 | 44017.343016.9 | 44017.343016.9 | 44017.343016.9 | 44017.343016.9 | 44017.3
JBottom Bracket Drop (mm) (inch)803.1 | 813.2803.1 | 813.2803.1 | 813.2803.1 | 813.2803.1 | 813.2803.1 | 813.2
KStack (mm) (inch)55621.957022.458623.160223.761624.363024.8
LReach (mm) (inch)381153811538715.239115.439715.640716
MStand Over Height (mm) (inch)71728.2 | 72428.573428.9 | 74129.275229.6 | 75929.976930.3 | 77630.678630.9 | 79331.280131.5 | 81031.9
NHandlebar Width (mm) (inch)42016.542016.544017.344017.346018.146018.1
OStem Length (mm) (inch)502602.4702.8803.1803.1903.5
PCrank Length (mm) (inch)1706.71706.7172.56.8172.56.81756.91756.9
QWheel Size 700x 42C |700x 42C |700x 42C |700x 42C |700x 42C |700x 42C |
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colours

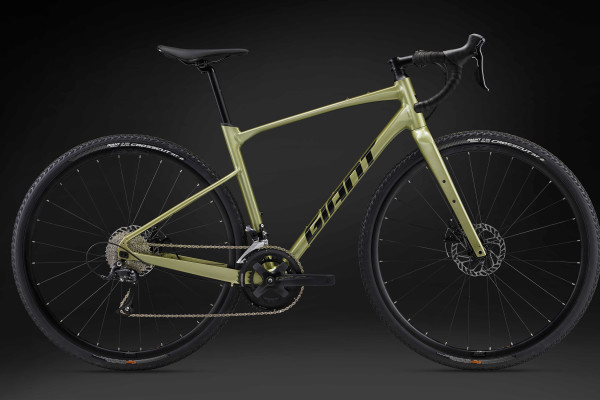

    Metallic Black, Bay Leaf
  • Frame
    ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout

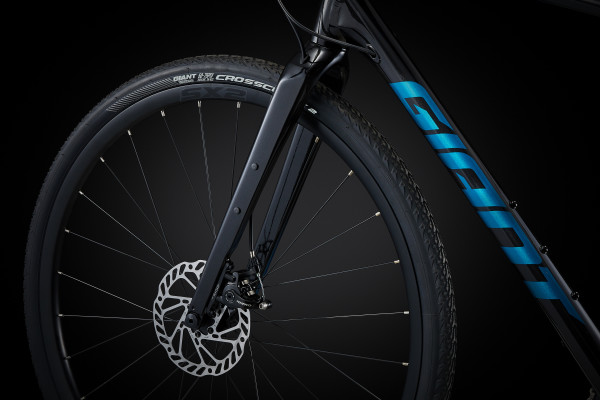

  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Shock
    N/A

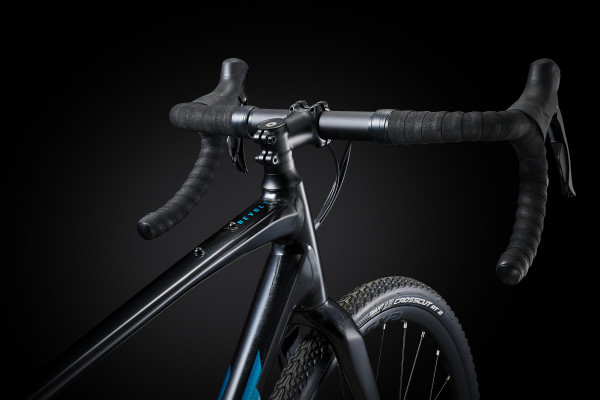

  • Handlebar
    Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
    cork tape with gel
  • Stem
    Giant Sport, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse, alloy, 14mm offset
  • Saddle
    Giant Approach
  • Pedals
    N/A
  • Shifters
    Shimano Sora, 2x9
  • Front Derailleur
    Shimano Sora

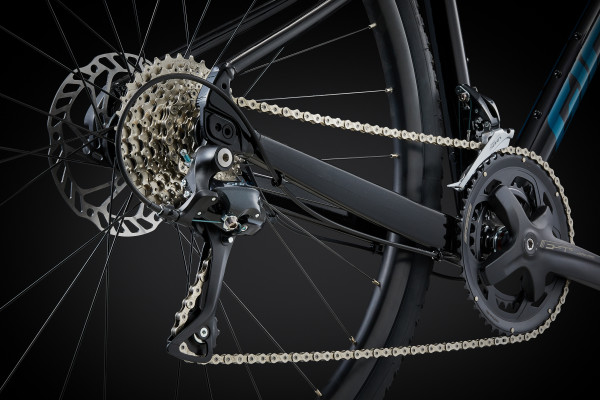

  • Rear Derailleur
    Shimano Sora, long cage
  • Brakes
    Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano Sora
  • Cassette
    Shimano HG400, 11x34
  • Chain
    KMC X9 with Missing Link

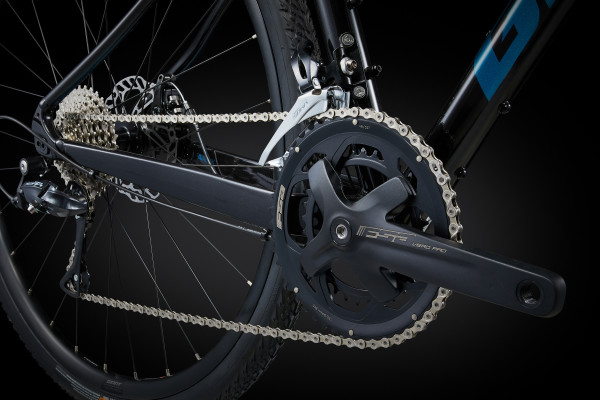

  • Crankset
    FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    cartridge
  • Rims
    Giant S-X2 Disc wheelset, alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    stainless
  • Tires
    Giant CrossCut AT 2, 700x38c, tubeless
  • Extras
    tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All prices and specifications are subject to change without notice.
