VancouverThis is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.
$7,299
You have added
Revolt Advanced Pro 0
to your cart.
Best For: Gravel
Revolt Advanced Pro 1
$6,199
Advanced composite frame and Advanced SL composite fork save a combined 200g compared to previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle for improved acceleration and climbing.

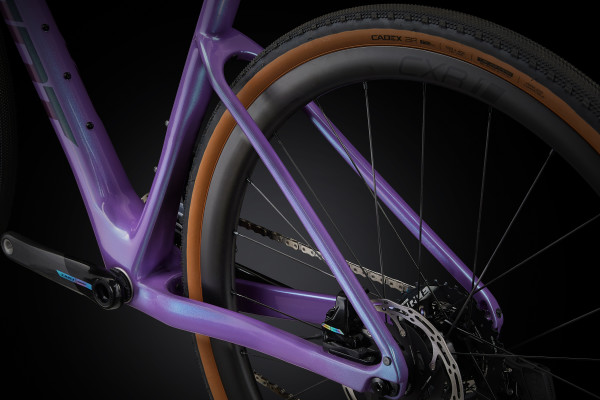

A lowered seatstay junction with smaller diameter tubes absorbs road shocks and vibrations. The Contact SLR D-Fuse carbon handlebar and D-Fuse seatpost work as a system to optimize compliance without sacrificing stiffness while cornering, sprinting and climbing.
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

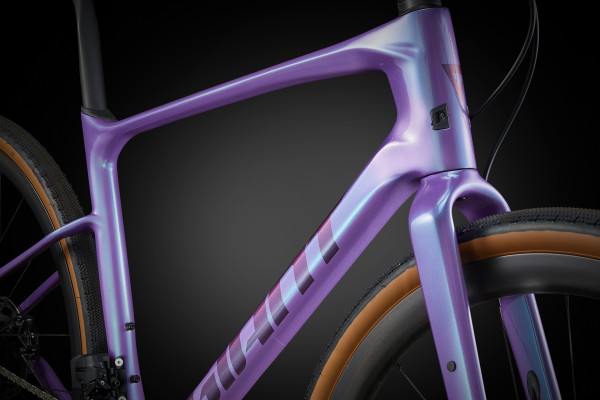

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Professional Grade raw carbon fiber is woven in our composite factory to produce our lightest, stiffest and highest quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline.

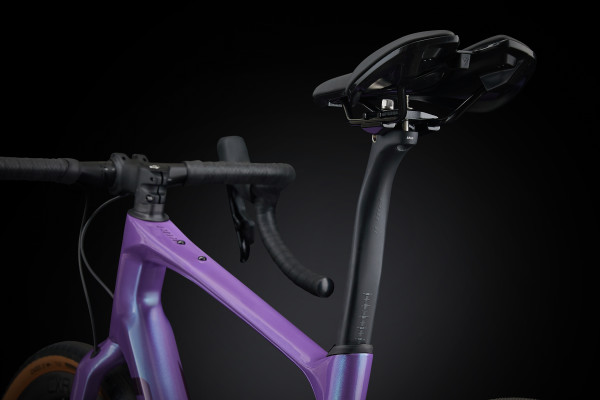

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

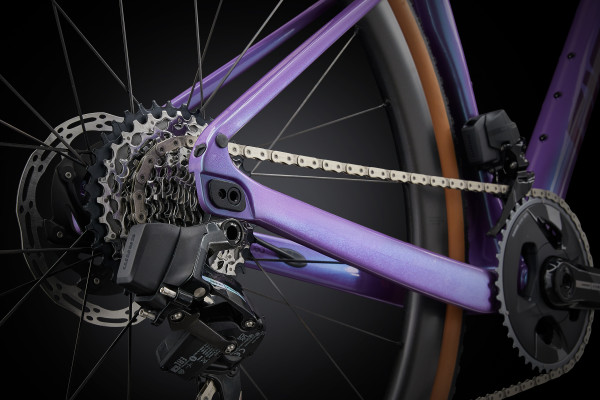

Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
166 cm5’5” 171 cm5’7” 181 cm5’11” 186 cm6’1” 191 cm6’3” 200 cm6’7”
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
| A | Seat Tube Length (mm) (inch) | 43016.9 | 45017.7 | 47018.5 | 49019.3 | 51020.1 | 53020.9 |
| B | Seat Tube Angle (degrees) | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (mm) (inch) | 54021.3 | 55021.7 | 56022 | 57522.6 | 58523 | 60023.6 |
| D | Head Tube Length (mm) (inch) | 1254.9 | 1355.3 | 1505.9 | 1656.5 | 1807.1 | 1957.7 |
| E | Head Tube Angle (degrees) | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F | Fork Rake (mm) (inch) | 502 | 502 | 502 | 502 | 502 | 502 |
| G | Trail (mm) (inch) | 783.1 | 823.2 | 722.8 | 753 | 682.7 | 722.8 | 652.6 | 682.7 | 652.6 | 682.7 | 652.6 | 682.7 |
| H | Wheelbase (mm) (inch) | 102440.3 | 103440.7 | 102040.2 | 103040.6 | 102640.4 | 103640.8 | 103140.6 | 104141 | 104141 | 105141.4 | 105641.6 | 106642 |
| I | Chain Stay Length (mm) (inch) | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 | 42516.7 | 43517.1 |
| J | Bottom Bracket Drop (mm) (inch) | 803.1 | 813.2 | 803.1 | 813.2 | 803.1 | 813.2 | 803.1 | 813.2 | 803.1 | 813.2 | 803.1 | 813.2 |
| K | Stack (mm) (inch) | 55621.9 | 57022.4 | 58623.1 | 60223.7 | 61624.3 | 63024.8 |
| L | Reach (mm) (inch) | 38115 | 38115 | 38715.2 | 39115.4 | 39715.6 | 40716 |
| M | Stand Over Height (mm) (inch) | 72428.5 | 73128.8 | 74029.1 | 74729.4 | 75729.8 | 76430.1 | 77430.5 | 78030.7 | 79131.1 | 79731.4 | 80731.8 | 81432 |
| N | Handlebar Width (mm) (inch) | 42016.5 | 42016.5 | 44017.3 | 44017.3 | 46018.1 | 46018.1 |
| O | Stem Length (mm) (inch) | 502 | 602.4 | 702.8 | 803.1 | 803.1 | 903.5 |
| P | Crank Length (mm) (inch) | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
All prices and specifications are subject to change without notice.
